Wire Rope Sling Assembly
Created with Pixso.

High Carbon Steel Galvanized Wire Rope Sling with 40KN MBL for Precast Concrete Lifting Loop

High Carbon Steel Galvanized Wire Rope Sling with 40KN MBL for Precast Concrete Lifting Loop

Brand Name: gaosheng
Model Number: LP600
MOQ: 900 pieces
Price: CN¥6.71/pieces 900-3599 pieces
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 50000 Piece/Pieces per Month
Detail Information
Place of Origin:
China
Steel Grade:
High Carbon
Standard:
DIN
Type:
Galvanized
Application:
Construction
Alloy Or Not:
Non-Alloy
Special Use:
Cold Heading Steel
Tolerance:
±1%
Processing Service:
Bending, Welding, Punching, Cutting
Grade:
Galvanized
Delivery Time:
22-30 Days
Product Name:
Lifting Galvanized Steel Cable Assembly Cast In Loops
Diameter:
8.0mm
Length:
600mm
Surface Treatment:
Zinc Coated
Material:
High Carbon Steel
MBL:
40KN
WLL:
16KN
Usage:
Construction For Precast Concrete
Safety Factor:
4:1
MOQ:
900PCS
Port:
Shanghai
Packaging Details:
Different packaging methods are adopted according to different modes of transport.
Highlight:

8mm steel wire rope

,

600mm steel wire rope

,

lifting steel wire rope sling

Product Description

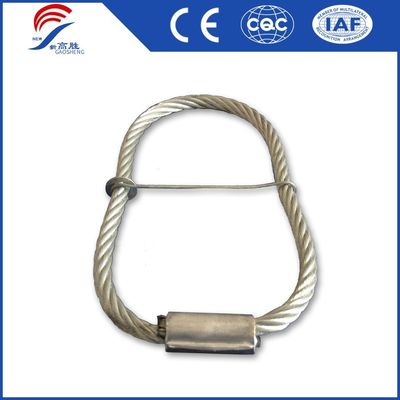

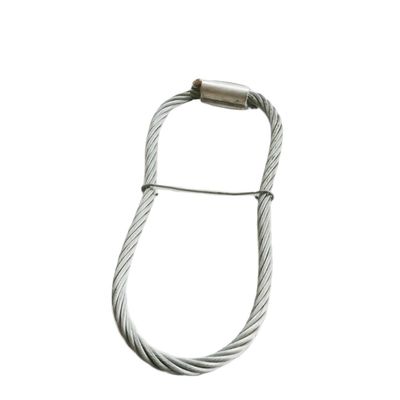

Steel Wire Rope Lifting Loop for Hoisting Reinforced Concrete Elements
Our galvanized steel wire rope slings are specifically designed for hoisting and lifting reinforced concrete elements in construction applications.
High Carbon Steel Galvanized Wire Rope Sling with 40KN MBL for Precast Concrete Lifting Loop 0 High Carbon Steel Galvanized Wire Rope Sling with 40KN MBL for Precast Concrete Lifting Loop 1 High Carbon Steel Galvanized Wire Rope Sling with 40KN MBL for Precast Concrete Lifting Loop 2 High Carbon Steel Galvanized Wire Rope Sling with 40KN MBL for Precast Concrete Lifting Loop 3
Product Overview
Our galvanized wire rope slings, also known as zinc-coated steel wire rope slings, are engineered for precast concrete applications. The construction features 6x19+IWRC design with a diameter of 7.0mm and standard length of 225mm.
High Carbon Steel Galvanized Wire Rope Sling with 40KN MBL for Precast Concrete Lifting Loop 4 High Carbon Steel Galvanized Wire Rope Sling with 40KN MBL for Precast Concrete Lifting Loop 5
Technical Specifications
Product Name 6x19 Type Galvanized Steel Wire Rope Sling for Precast Concrete
Size 8.0mm * 600mm
Type Electric Galvanized
Raw Material High Carbon Steel
Brand Name GAOSHENG
Breaking Strength Not less than 40KN
Standards ASTM, DIN, GB
Color Silver
HS Code 7312900000
Application Construction for Precast Concrete
Key Features
  • High tensile strength for demanding lifting applications
  • Excellent flexibility and wear resistance
  • Superior anti-seismic properties
  • Stable operation in high-speed conditions
  • Electric galvanized coating for corrosion protection
  • Aluminium sleeve construction for durability
Manufacturing Advantages
As a factory with over 10 years of steel wire rope manufacturing and export experience, we offer:
  • Direct factory pricing with no middlemen
  • Consistent high-quality products
  • Free samples available for testing
  • ISO9001:2008 certified quality management system
Packaging & Shipping
Minimum Order Quantity 900 pieces
Loading Port Shanghai Port
Delivery Time 25 days after deposit
Container Capacity 200,000 pcs (20ft) / 400,000 pcs (40ft)
Factory Location Jiangyin City, Jiangsu Province, China
Packaging Plywood cases or pallets, customizable per requirements
High Carbon Steel Galvanized Wire Rope Sling with 40KN MBL for Precast Concrete Lifting Loop 6
Company Profile
Jiangyin Gaosheng Metal Manufacture Co., Ltd. specializes in manufacturing various steel wire ropes including general-purpose, galvanized, ungalvanized, stainless steel, PVC coated wire ropes, cable tie-outs, and steel wire rope slings.
Our products serve multiple industries including aviation, automotive, precision instruments, aerospace, mining, heavy machinery, construction, fisheries, and petrochemical applications.
Quality Assurance
We maintain advanced manufacturing and testing equipment with optimized processes and mature quality control systems. Our products meet international standards including GB, DIN, BS, JIS, ASTM, RR-W-410D, and ISO.
Customer Services
  • Prompt response during business hours (Monday-Friday)
  • Customized sizes available
  • Free sample program
  • OEM manufacturing services
  • Fast delivery times
  • Comprehensive after-sales support
