What are Elevator Ropes? Elevator ropes (often called "hoist ropes" or "cables") are the critical components that connect the elevator car to the counterweight and are driven by the machine to move the car up and down the hoistway. They are engineered for extreme strength, durability, and safety. The most common type in modern elevators is the steel wire rope. 1. Types of Elevator Roping Systems How the ropes are arranged determines the elevator's speed, capacity, and mechanical advantage. Single Wrap (1:1) Roping: How it works: The rope is fastened at one end to the top of the hoistway, wraps around the drive sheave on the machine, and is fastened to the counterweight. The car is connected directly to the rope. For every one meter the sheave turns, the car travels one meter. Use Case: Best for mid to high-rise buildings. It allows for higher speeds and is more efficient. Double Wrap (2:1) Roping: How it works: The rope is fixed to the top of the hoistway, goes down and under a deflector sheave on the car, up to the drive sheave on the machine, back down to a sheave on the counterweight, and is finally fixed back at the top of the hoistway. This creates a 2:1 mechanical advantage. Advantage: The load on the drive sheave is halved. This allows the use of a smaller, less powerful machine. Use Case: Common for heavy freight elevators and traction elevators in low to mid-rise buildings. Underslung Roping: How it works: The drive sheave is located below the car, and the ropes are attached to the sides of the car and run underneath it. This is a less common configuration, often used to save space in the machine room. 2. Construction of Steel Wire Ropes Elevator ropes are not a single thick wire but a complex assembly for flexibility and strength. Core: The center of the rope. It can be made of fiber (for flexibility) or a steel strand (for strength and resistance to crushing). Wires: Thin, high-strength steel wires are twisted together to form a strand. Strands: Multiple strands (typically 8 or 9 for elevators) are then laid helically around the core to form the complete rope. Preforming: The wires and strands are preformed during manufacturing into their helical shape. This makes the rope more flexible, resistant to kinking, and reduces internal stress when cut.

A cast-in lifting loop (also known as an embedment lifting eye, concrete insert, or cast-in anchor) is a prefabricated steel component that is embedded into a concrete element during pouring. Its sole purpose is to provide a secure and rated point for lifting, moving, and placing the concrete element once it has cured. 1. Purpose and Function The primary function of a cast-in lifting loop is to transfer the massive forces from the lift (the weight of the concrete element plus dynamic forces during movement) safely into the reinforced concrete structure. Using a properly designed loop prevents damage to the concrete during lifting, which could lead to cracking or catastrophic failure. 2. Key Components and Design Features Loop / Eye: The visible circular part that a shackle or hook from a crane or rigging system attaches to. Embedment Legs / Anchorage: The long, straight or deformed bars that extend deep into the concrete. These are crucial as they transfer the load into the concrete mass. They often have hooked ends or are welded to a base plate to prevent them from being pulled out. Material: Typically made from high-strength forged or wrought steel to avoid the brittleness of cast steel. Load Rating: Certified loops will have a Working Load Limit (WLL) or Safe Working Load (SWL) clearly stamped or marked on them. This is the maximum force they are designed to handle in a specific orientation (e.g., straight pull vs. angular pull). Design: They are engineered to ensure the anchor fails in a ductile manner (steel yields) rather than a brittle concrete failure. 3. Types of Cast-in Lifting Loops Standard Lifting Loops: The most common type, consisting of a round eye with two embedment legs. They are often placed in pairs to allow for a two-legged sling connection. Threaded Inserts / Sockets: Instead of a loop, a threaded socket is embedded flush with the concrete surface. A matching threaded eye bolt is then screwed in for lifting and removed afterwards for a clean finish. Common in precast panels where aesthetics matter. Bent Bar Loops: Simple loops bent from reinforcing bar ("rebar"). This is generally discouraged for critical lifts unless designed by a professional engineer, as the sharp bend can create a weak point and the WLL is not reliably certified. Plate Loops: A loop is welded to a steel plate, providing a larger bearing surface against the concrete to distribute the load more effectively. 4. Installation Process Positioning: The loop is positioned and tied securely to the internal rebar cage before the concrete is poured. Its location is determined by engineering plans to ensure the load is transferred correctly. Alignment: It is crucial that the loops are placed correctly—oriented for the pull direction and at the right height so the eye is accessible but not obstructing the concrete finish. Pouring: Concrete is poured around the loop, fully encapsulating the embedment legs. The loop becomes a permanent part of the element. 5. Critical Safety Considerations Engineering Design: The size, quantity, and placement of lifting loops must be specified by a structural engineer. They calculate the forces involved and ensure the concrete itself can handle the stresses at the attachment points. Certified Hardware: Only use loops with a clearly marked WLL from a reputable manufacturer. Never use unmarked or homemade loops. Inspection: Loops must be inspected before every use for signs of damage, cracks, excessive rust, or deformation. Lifting Angle: The WLL decreases significantly if the load is applied at an angle (side load). Always use rigging (slings, shackles) that connects to the loop in a straight pull whenever possible. Point of No Return: Never stand under a lifted concrete element. Lifting operations must be performed by trained personnel.

What is a Clothesline? A clothesline is a length of rope, cord, or wire strung between two points (like poles, walls, or trees) used to hang laundry so it can dry by evaporation with the help of sunlight and wind. It's a natural, energy-free, and cost-effective drying method. 1. Types of Clotheslines There are several popular designs, each with its own advantages: A. Traditional Line (Single or Parallel) Description: The classic style involves one or multiple lines run horizontally between two fixed points (e.g., two T-shaped posts in the yard). Pros: Simple, inexpensive, can hold a large amount of laundry. Cons: Requires significant space, can sag under weight, laundry may brush against the ground if not tight. B. Retractable Clothesline Description: A unit housed in a wall-mounted box that contains a coiled line. You pull the end out and attach it to a hook on another wall or post. Pros: Extremely space-efficient, discreet when not in use, great for balconies and small spaces. Cons: Lower capacity (usually only one line), can be less sturdy for heavy items like jeans or towels. C. Umbrella / Rotary Clothesline Description: A central pole with multiple lines radiating outward, resembling an umbrella. It can be folded down when not in use. Pros: Very high capacity in a compact footprint, rotates to catch the wind and sun from all angles. Cons: Requires a clear circular space in the yard, can be difficult to raise/lower when fully loaded. D. Wall-Mounted Dryer (Pulley System) Description: A system where the line runs through two pulleys. One end is tied to a fixed point, and the other has a handle. This allows you to hang laundry from a balcony or porch and then pull it out into the open air. Pros: Ideal for apartment balconies and elevated porches. You can access the laundry without walking into the yard. Cons: Installation is more complex, capacity is limited by the line length. E. Clothesline on a Frame (Horse) Description: A portable, free-standing frame, often with multiple racks or lines, that can be moved around a yard or patio. Pros: Portable, no installation required, can be moved to follow the sun or stored away easily. Cons: Generally lower capacity than fixed lines, can be less stable in wind. 2. Materials for the Line Itself Stainless Steel Wire: Very strong, durable, and doesn't stretch or sag. It can be hard on clothes pegs and may leave rust marks if not truly stainless. Plastic-Coated Wire (Polypropylene/Nylon): The most common type. It's weather-resistant, gentle on clothes, and easy to handle. It can stretch over time. Natural Fiber (Cotton, Hemp): Traditional and eco-friendly. They are biodegradable but less durable, susceptible to rot and weather damage.

What is a Dog Tie-Out Cable? A dog tie-out cable is a length of coated steel cable, typically with a swivel eye bolt on one end (to attach to a stationary anchor) and a snap hook on the other (to attach to a dog's harness or collar). It is designed to temporarily restrain a dog in a specific outdoor area, giving them room to move and explore while preventing them from running off. 1. Key Components and Features Cable: The core line, usually made of galvanized or stainless steel coated in vinyl or plastic for weather resistance and to prevent tangling. The steel core is chew-resistant. Length: Commonly available in lengths from 10 feet to 50 feet (3 to 15 meters). The right length depends on your space and the dog's size and energy level. Swivel: A critical safety feature. A swivel is typically located at both ends (or in the middle) to prevent the cable from becoming dangerously twisted as the dog moves around. Snap Hook: The metal clip that attaches to the dog's gear. It should be sturdy and rust-resistant. Stake / Ground Anchor: Many kits come with a spiral-shaped metal stake that is screwed into the ground to serve as the anchor point. 2. Types of Tie-Out Systems Basic Cable Kit: This is the most common type, sold as an all-in-one package containing the cable, a ground stake, and often a swivel. Overhead Trolley System: A more complex setup involving a cable stretched tightly between two anchors (e.g., two trees or posts). A pulley runs along this main cable, with a lead dropping down that attaches to the dog. This allows the dog to run back and forth along the length of the cable without getting tangled. It's excellent for larger areas and high-energy dogs. Retractable Tie-Out: Functions like a giant retractable leash anchored to a fixed point. Less common than cables due to potential durability issues. 3. Critical Safety Considerations and Risks Tie-outs can be dangerous if used improperly. They require constant supervision. Risk Description & Prevention Tangling & Strangulation This is the biggest risk. The dog can easily wrap the cable around legs, neck, or objects (trees, posts, furniture). Always use a swivel and never leave a dog unattended on a tie-out. Neck & Trachea Injury If a dog hits the end of the cable at a full run while attached to a collar, it can severely injure its neck. Always attach the cable to a well-fitting harness, never just a collar. Equipment Failure Cheap, worn-out, or rusty cables, snaps, or swivels can break. Regularly inspect all components for signs of wear, rust, or damage. Weather Extremes A tethered dog has no escape from sun, rain, or cold. Ensure they have access to fresh water and shade at all times. Never leave a dog on a tie-out during storms or extreme weather. Predators & Harassement A tethered dog is vulnerable to attacks from other animals and cannot flee from harassment (e.g., by people or off-leash dogs). Always be present and watchful. Frustration & Aggression Being tethered can be frustrating for a dog, leading to barking, digging, and potentially barrier frustration or aggression. It is not a substitute for proper exercise and stimulation.

What is a Garage Door Cable? A garage door cable is a high-strength steel cable that works with the springs, pulleys, and other hardware to lift and lower the door smoothly and safely. They are under extreme tension and are a vital safety component. There are two main types, corresponding to the two main types of garage door springs. 1. Types of Garage Door Cables A. Torsion Spring Cables (Horizontal Springs) Location: The spring is mounted horizontally on a metal shaft above the closed garage door. Function: These cables are attached to the bottom corner of the door on each side. They run up and through a drum that is attached to the torsion spring shaft. How it Works: When the spring unwinds, it rotates the drum, which winds the cable around it, lifting the door. Lowering the door winds the spring back up, storing energy for the next lift. B. Extension Spring Cables (Vertical Springs) Location: The springs are mounted vertically on either side of the door track. Function: These are primarily safety cables that run through the middle of the extension spring. How it Works: The main lifting force comes from the springs themselves stretching and contracting. The safety cable's sole job is to prevent a catastrophic accident. If the extension spring breaks, the cable will contain the metal pieces, preventing them from flying across the garage like a dangerous projectile. 2. Key Components and Terminology Lifting Cable: The main cable that does the work of lifting the door (used in torsion systems). Safety Cable: The cable that runs through an extension spring for containment. Bottom Bracket: The heavy-duty bracket at the bottom corner of the door where the lifting cable is attached. Drum: The pulley-like component on the torsion spring shaft that the cable wraps around. Cable Plate: A securing plate on the drum where the end of the cable is anchored. 3. Importance and Warning Signs Garage door cables are under immense tension. A broken or frayed cable can cause the door to fall suddenly or operate unsafely. Signs of a Problem: Visible Fraying: Any sign of broken strands or wear on the cable is a major red flag. Door is Uneven/Crooked: If one cable is loose or damaged, one side of the door may hang lower than the other. Loud Popping or Snapping Sound: This often indicates a cable or spring has broken. Door Won't Open or is Very Heavy: A malfunction in the cable system prevents the springs from doing their job, putting all the strain on the opener. Cable is Off the Drum: If the cable has jumped off its track on the drum, the system will not function correctly.

A car window regulator cable is a critical component within the door panel that enables the manual or electric raising and lowering of a vehicle's window. In modern vehicles, this system is predominantly a "cable-type" regulator, which has largely replaced older scissor-arm designs. The system consists of a small, powerful electric motor that drives a plastic drum. Wound around this drum is a high-strength, braided steel cable, often coated in nylon for smooth operation. This cable is routed through a series of pulleys and guides within a regulator frame, forming a continuous loop. It attaches directly to a plate or bracket that is bolted to the bottom of the window glass. When you press the window switch, the motor activates, spinning the drum. Depending on the direction, it either winds one side of the cable in while unwinding the other, or vice versa. This action smoothly pulls the window up or down along its tracks with precision. Common failure points include fraying or snapping of the steel cable due to age, friction, or a bound-up window. Plastic pulleys can also wear out or break. A failed cable regulator typically results in a window that won't stay up, drops into the door, or makes grinding noises, necessitating a replacement of the entire regulator assembly.

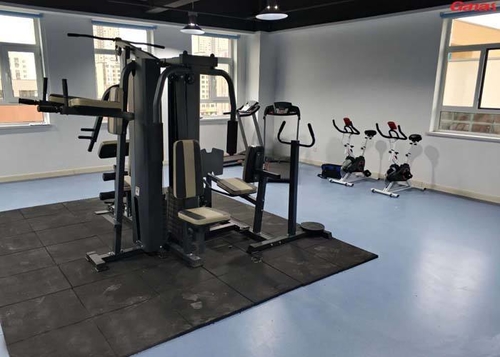

A gym cable, in the fitness context, refers to the high-strength, flexible steel cable that is the core component of cable machines, functional trainers, and pulleys found in gyms. These cables are designed to transmit force from a weight stack to the user via a handle or attachment, providing consistent, smooth resistance throughout an exercise's entire range of motion. Unlike free weights, which rely on gravity for vertical resistance, cable systems offer versatile vector resistance. This means the force can be applied horizontally, diagonally, or vertically, allowing for a much wider variety of movements that target stabilizer muscles and mimic real-world activities. The cable itself is typically coated with a durable polymer like nylon or vinyl to protect it from fraying, reduce noise, and ensure smooth operation over pulleys. The key to their function is the pulley system. As the user pulls the handle, the cable glides over these pulleys, redirecting the force from the weighted stack. This creates a consistent, "unfree" weight that challenges muscles differently. Their versatility makes them ideal for exercises like cable cross-overs, triceps push-downs, wood chops, and rotational moves, offering both isolation and compound movement options in a controlled manner. Regular maintenance and inspection for fraying are essential for safety.

A tow cable (or tow rope) is a vital recovery tool designed to pull a stranded vehicle from an immobile position, such as mud, snow, or a ditch. Unlike a simple rope, it is engineered for extreme tensile strength and dynamic energy absorption to handle the immense forces involved in vehicle recovery. Constructed from high-grade materials like synthetic polymer (e.g., kinetic recovery ropes made from nylon or polyester) or steel cable, its core function is to transfer pulling force from a recovery vehicle. Critical specifications include its working load limit (WLL) and break strength, which must far exceed the gross vehicle weight of the stuck car. Modern synthetic "kinetic" ropes are particularly valued for their elasticity; they stretch significantly under load, storing energy like a rubber band. This creates a smooth, jerking motion that mimics a gentle tug, vastly reducing the shock load on both vehicles' frames and recovery points compared to a rigid chain or non-stretch cable. Proper use is paramount for safety. It must always be attached to dedicated recovery points, not tow hooks or suspension parts. A damper weight (like a heavy blanket) should be draped over the midpoint to prevent a catastrophic snap-back if the cable fails. Its length is also crucial, providing a safe distance between vehicles during the pull.
