Cable Lift Loop Wire Rope Anchor for construction

Brand Name:	gaosheng
Model Number:	719 or 619+fc
MOQ:	1000 pieces
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:2015

Product Name:

Cable Lift Loop Wire Rope Anchor

Type:

Galvanized

Tolerance:

±3%

Grade:

High Carbon Steel

Delivery Time:

22-30 Days

Length:

200 - 610mm

Capacity:

0.8 - 25MT

Surface:

Galvanized

Packing:

Plywood Box

Material:

High Tensile Steel 72A 82A

Tensile Strength:

1570-2160MPA

Certificate:

ISO9001

Diameter:

6mm To 32mm

Packaging Details:

Different packaging methods are adopted according to different modes of transport.

Product Description

Cable Lift Loop Wire Rope Anchor for Construction

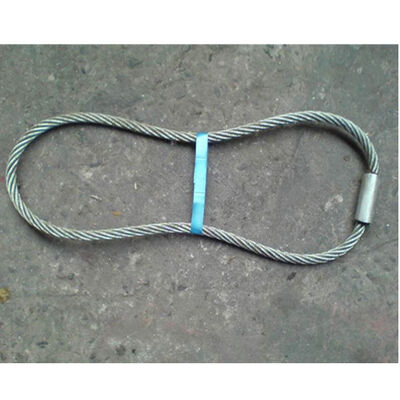

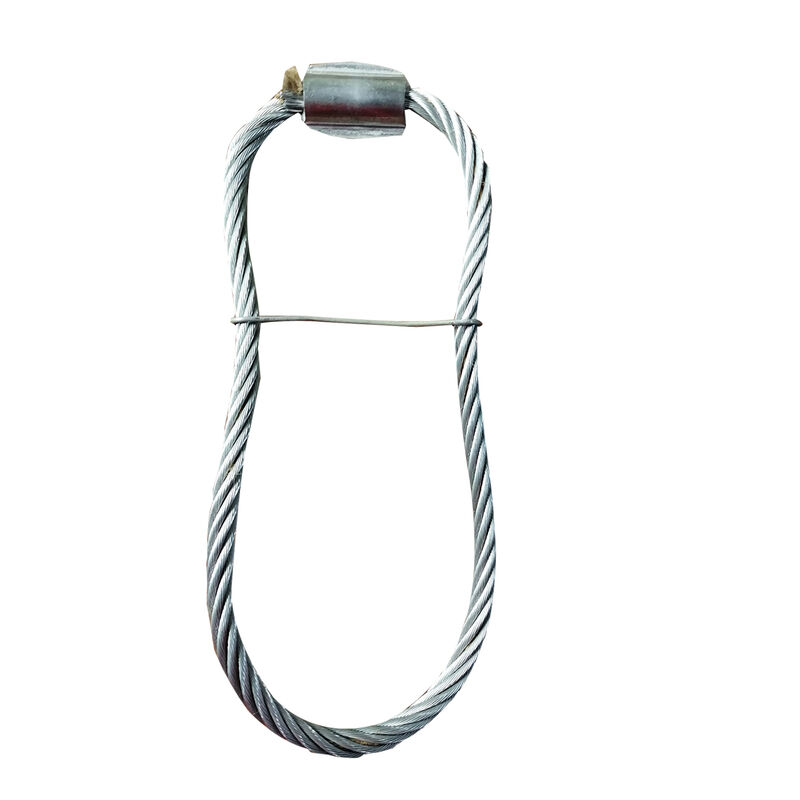

The Wire Rope Lifting System is an economical lifting loop for utility type structures. It is used in either face or edge lifts applications and is embedded into the surface of the concrete. The galvanized wire rope is formed in a figure-8 shape, with the ends of the rope secured by a positive swaged clamp, and a steel band at approximately the midpoint to establish the proper shape.

The Wire Rope Lifting System is embedded 2/3 of its length into the concrete. The hardware must be standard hook or clevis with a diameter at least twice the rope diameter. Each anchor has a color-coded tag which identifies the SWL (safe working load) in tension of the anchor.

Product Specifications

Product Name	Cable Lift Loop Wire Rope Anchor
Type	Galvanized
Tolerance	±3%
Grade	High Carbon Steel
Delivery Time	22-30 days
Length	200 - 610mm
Capacity	0.8 - 25MT
Surface	Galvanized
Packing	Plywood Box
Material	High Tensile Steel 72A 82A
Tensile Strength	1570-2160MPA
Certificate	ISO9001
Diameter	6mm to 32mm

Key Features

7 standard sizes - handles most precast applications up to 10,000 lb SWL
Embedded into surface - no recess members required by the precaster
Galvanized wire rope - reduces rusting of the anchor
Can be cut off or left exposed - reduces labor cost for precaster
Economical solution for cost-conscious precast applications

Detailed Specifications

Part Code	S.W.L. (TON)	Rope Dia (mm)	Loop Height (mm)
GS00800	0.8	6	200
GS01200	1.2	7	220
GS01600	1.6	8	235
GS02000	2.0	9	255
GS02500	2.5	10	280
GS04000	4.0	12	330
GS05200	5.2	14	385
GS06300	6.3	16	385
GS08000	8.0	18	430
GS10000	10.0	20	470
GS12500	12.5	22	510
GS16000	16.0	26	560
GS20000	20.0	28	610
GS25000	25.0	32	670
